The new technology of lighting using acrylic glass – plexiglass. Construction is made of an aluminum frame of 32x19 mm. Glass of the mirror is 5 mm thick. The diameter of the mirror is 600 mm. LED diode stripes are hidden in a PVC tube behind the glass of the mirror. The light goes through the glass and reflects around the whole perimeter of the mirror thus it creates a breathtaking effect on the wall behind. Connection 220-240V. IP 44. With no switch, connection to wiring, turning on through switch of light in the room. Color temperature – daylight. LED diodes are high performance and the lifetime of the LED is up to 50.000 hours.
SURFACE FINISH: aluminium frame
MATERIAL: glass + aluminium

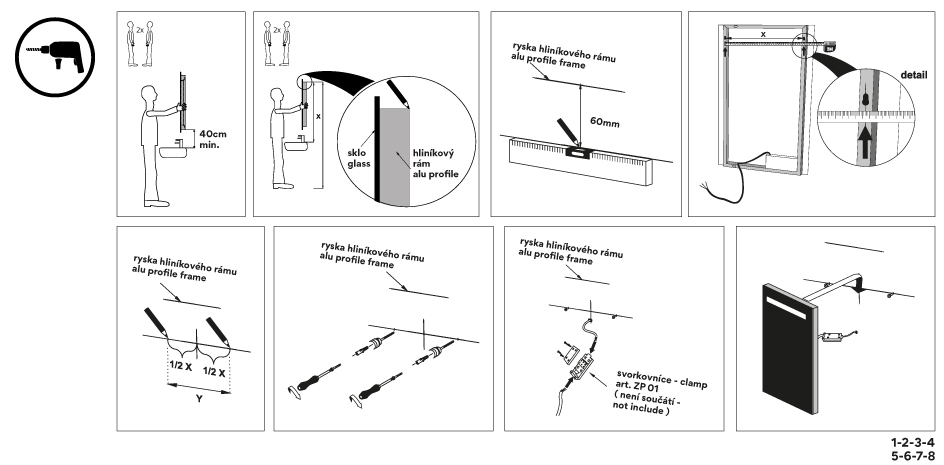

INSTALLATION INSTRUCTION - DRILLLING
NIMCO general illustrated assembly instructions.
Correct combination of dowels and screws for:
CONCRETE - dowel diameter 6, screw min. 3.5 * 40mm
BRICK - dowel diameter 6, screw min. 3.5 * 40mm
RIGIPS - dowel fastening to plasterboard and hollow materials diameter 6mm, dowel lenght 35mm, screw 3.5 * 40mm
FLOOR - dowel and screw - MUST be used with thickness of the given tiles (pavement)
MAINTENANCE FOR LED MIRRORS
The mirror is basically maintenance-free. The outer side of the mirror requires washing by classic detergents for washing windows. Do
not use any aggressive detergent (especially those containing chlorine and its derivatives) which can cause oxidation of the mirror. The inner side of the mirror does not require any specific maintenance. In case of damaging the protective cover, it is necessary to replace it in the producer’s service centre.
Warning! Before operating the mirror, you have to turn the mirror off and turn off the electricity supply as well. Electric equipment of the mirror is
maintenance-free. it is necessary to replace it just in case of light source failure. Contact the producer or seller for any repairs. Installation of the electrical device requires a qualified electrician and it should be done in accordance with regulations. If the supply cable is damaged, it must be replaced by the new cable provided by the producer or their service technician.
A legal guarantee period is determined.
