LED mirror 900x700

Name: LED mirror 900x700
Brand: Nimco
Price: 7090 CZK
Availability: InStock

ZP 17019

Bathroom mirrors with lighting

ZP 17000

7090 Kč

Available: Within 24 hours

Illuminated bathroom LED mirror. Output 21 W, temperature 6500 K. 1512 Lumens.

ZP 17000

ZP 17019

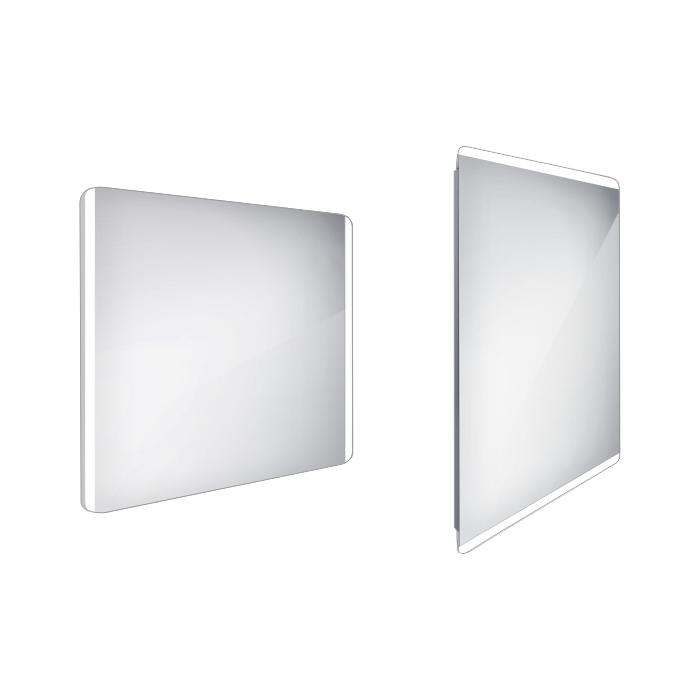

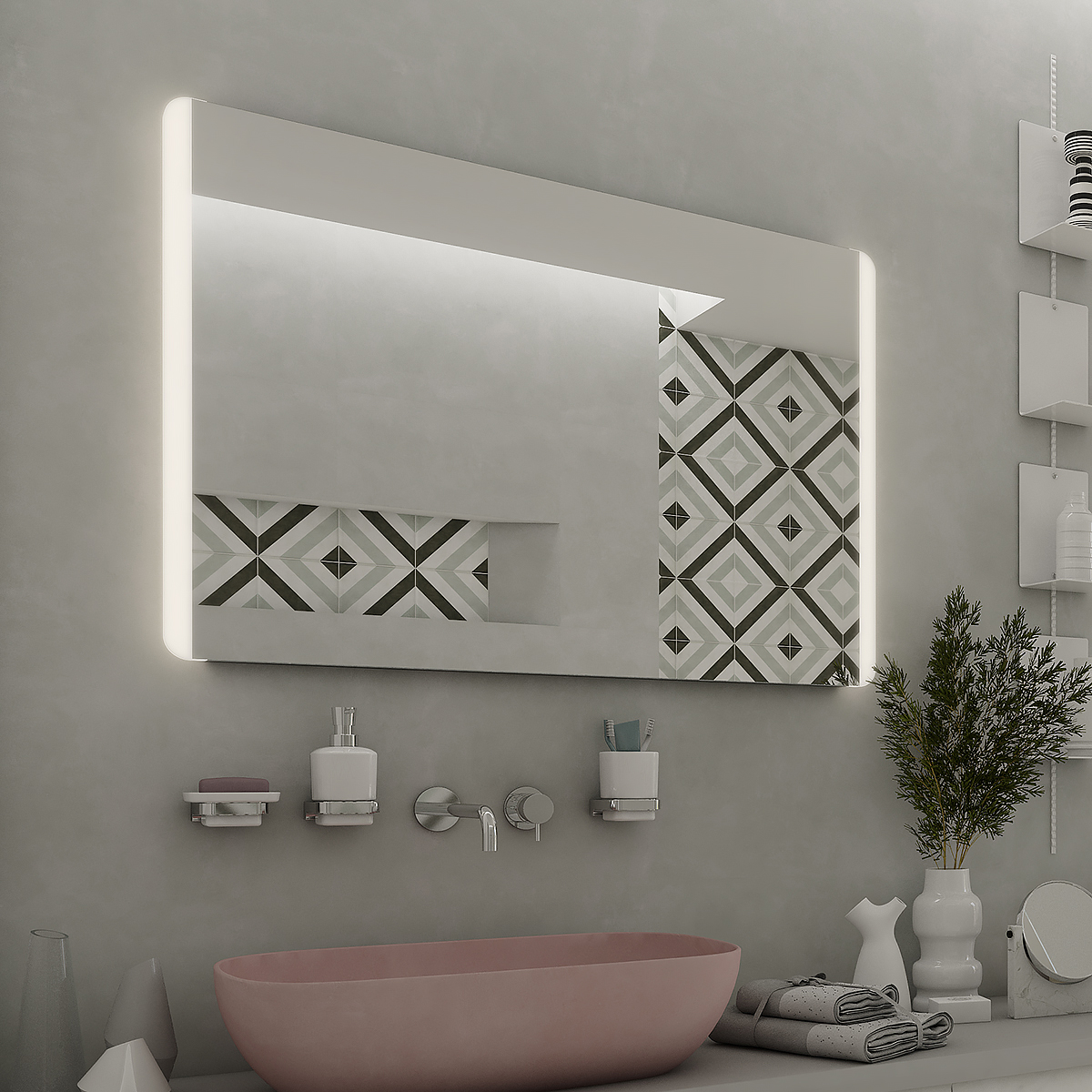

LED mirror 900x700 Nimco ZP 17019

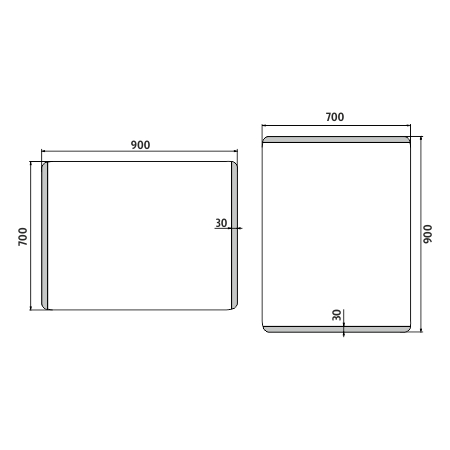

The new technology of lighting using acrylic glass – plexiglass. Construction is made of aluminium frame of 32x19 mm. Glass of the mirror is 5 mm thick. It is possible to attach the mirror horizontally or vertically. Connection 220-240V. IP 44. With no switch, connection to wiring, turning on through switch of light in the room. Color temperature – day light. The lifetime of the LED is up to 50.000 hours.

Color / Finish: Aluminium

Surface finish: Aluminium frame.

Material: glass + aluminium

EAN: 8595187110670

Serie: NIMCO ZP 17000

Assembly and placement: Wall mounted - drilling

General catalogue

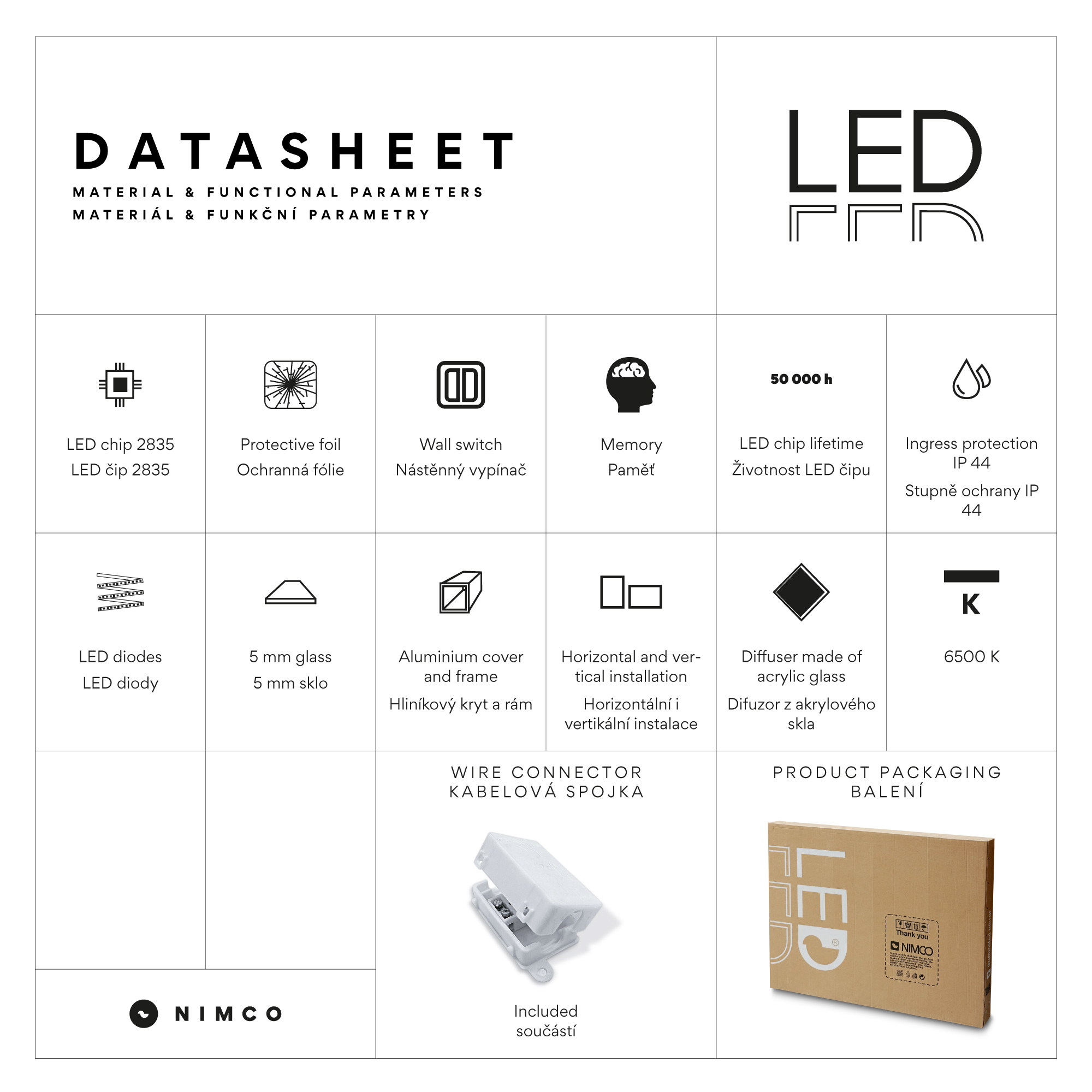

M A T E R I A L & F U N C T I O N A L P A R A M E T E R S

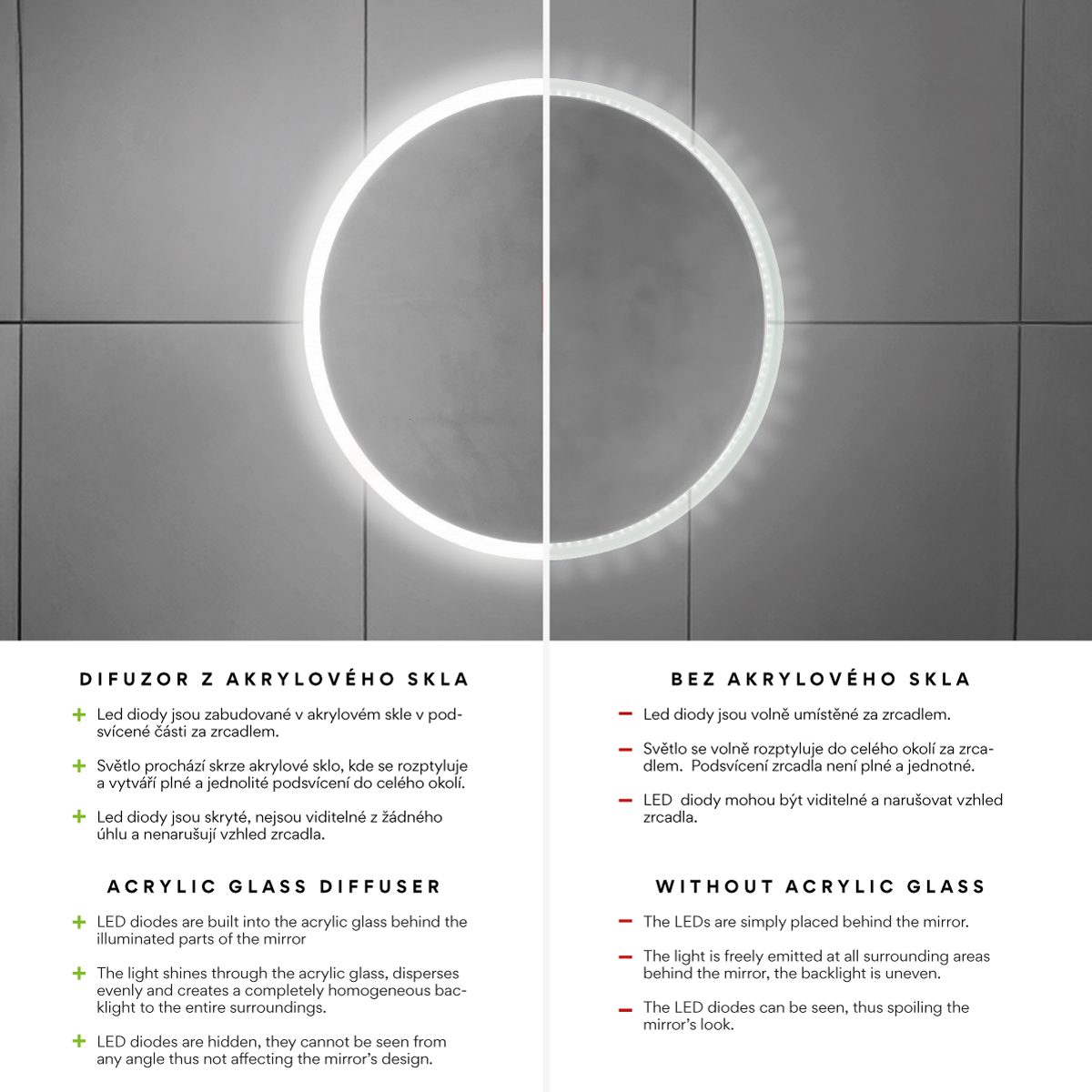

Why NIMCO LED mirrors?

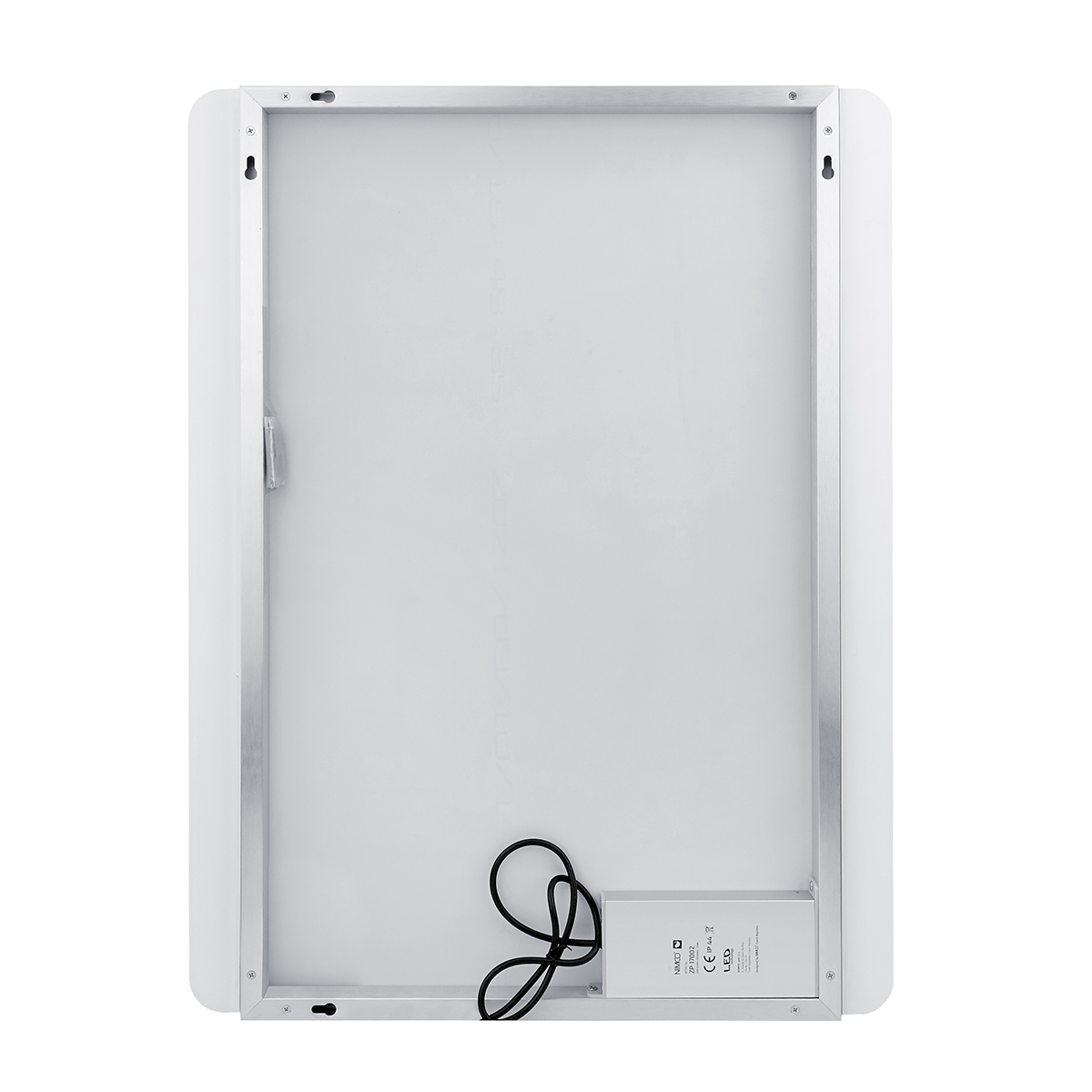

Nimco backlit mirrors - construction elements:

LED mirrors - Explainer video

INSTALLATION INSTRUCTION - DRILLLING

NIMCO general illustrated assembly instructions.

The product includes screws and dowels. It can be used in concrete and cladding, which has a thickness of up to 8 mm.

Correct combination of dowels and screws for:

CONCRETE - dowel diameter 6, screw min. 3.5 * 40mm
BRICK - dowel diameter 6, screw min. 3.5 * 40mm
RIGIPS - dowel fastening to plasterboard and hollow materials diameter 6mm, dowel lenght 35mm, screw 3.5 * 40mm
FLOOR - dowel and screw - MUST be used with thickness of the given tiles (pavement)

Common assembly errors!

-drilling into joints
-using the wrong size (diameter and length) of dowels and screws
-using the wrong drill size
-clogged hole after drilling
-the dowel used protrudes above the cladding. The dowel must be flush with the cladding. Otherwise, the product will not stick to the tile and it will warp!
- the product will not be attached to the wall in one plane if the holes are drilled incorrectly

DOWNLOAD (.pdf)

MAINTENANCE FOR LED MIRRORS

The mirror is basically maintenance-free. The outer side of the mirror requires washing by classic detergents for washing windows. Do
not use any aggressive detergent (especially those containing chlorine and its derivatives) which can cause oxidation of the mirror. The inner side of the mirror does not require any specific maintenance. In case of damaging the protective cover, it is necessary to replace it in the producer’s service centre.

To clean the mirrors, simply use the cloths, which can be ordered under the article numbers RP 1006 and RP 1006 SET. These cloths are great helpers in the home, ideal especially for cleaning mirror and glass surfaces. Thanks to their high quality, they ensure perfect results every time they are used, without the need for chemicals.

Warning! Before operating the mirror, you have to turn the mirror off and turn off the electricity supply as well. Electric equipment of the mirror is
maintenance-free. it is necessary to replace it just in case of light source failure. Contact the producer or seller for any repairs. Installation of the electrical device requires a qualified electrician and it should be done in accordance with regulations. If the supply cable is damaged, it must be replaced by the new cable provided by the producer or their service technician.
