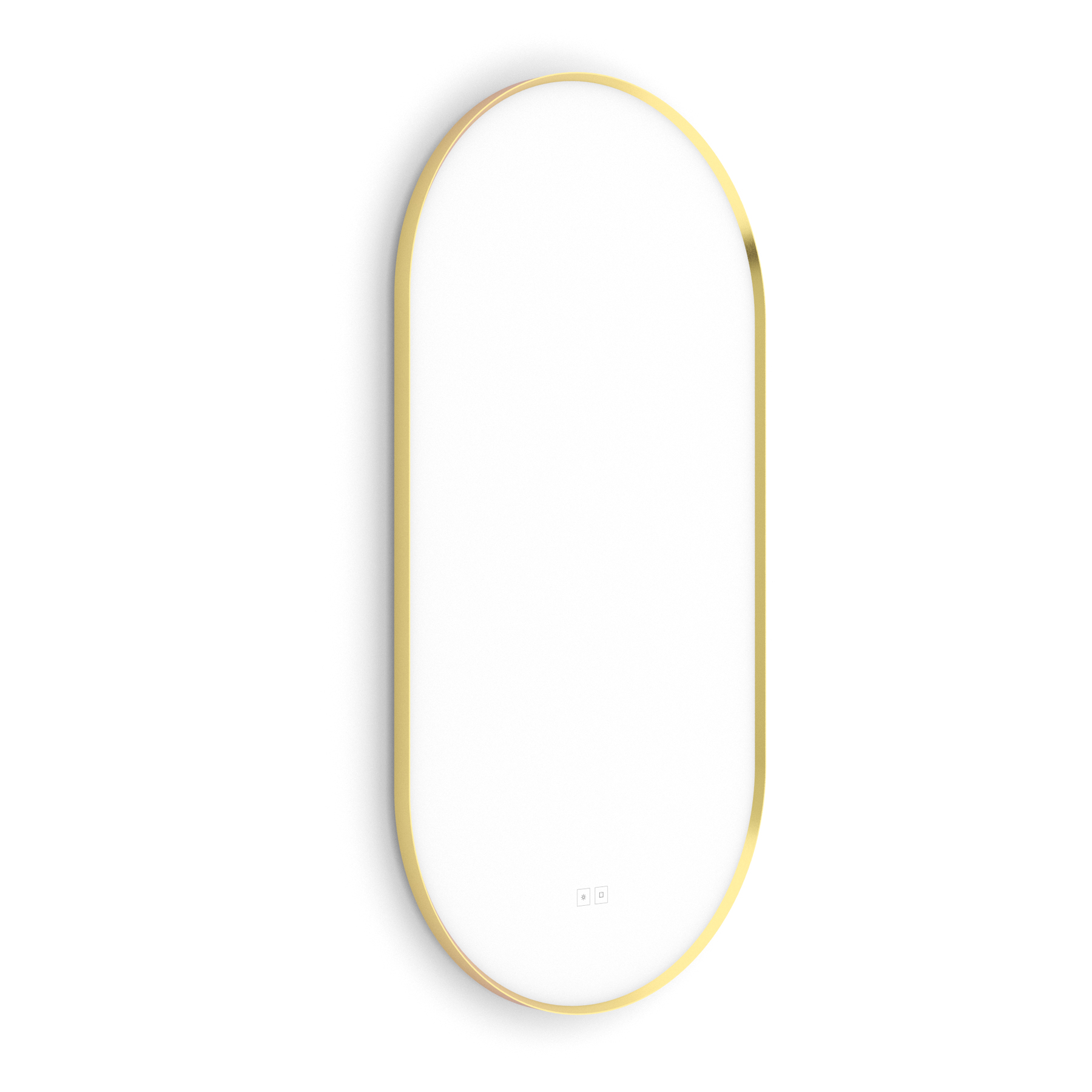

Oval shape; with visible frame; all-round lighting;
A luxurious oval mirror with a golden frame brings a sophisticated and distinctive accent to the bathroom. The gold design adds warmth and elegance to the space, while the conical profile of the frame accentuates the shape of the mirror and gives it plastic depth. Lighting is provided exclusively by rear LED backlighting, which gently illuminates the wall behind the mirror and creates a refined, non-glaring atmosphere.
The mirror is controlled by two touch backlit sensors that allow changing the color of the lighting, setting the intensity of the lighting (dimming) and have a memory function for saving the last setting. In addition, the mirror can be controlled using a wall switch, which increases its flexibility and convenience of use.
To achieve high-quality and uniform lighting, an acrylic diffuser is used, which ensures a soft and harmonious scattering of light without visible point sources. The LEDs are elegantly integrated into the aluminum profile together with the diffuser, which contributes to the clean and modern look of the mirror.
The mirror uses the most modern SMD LED chips 2835, which are known for their high brightness, energy efficiency and long service life. 96+96/m chip density (192/m), 50 000 clock life.

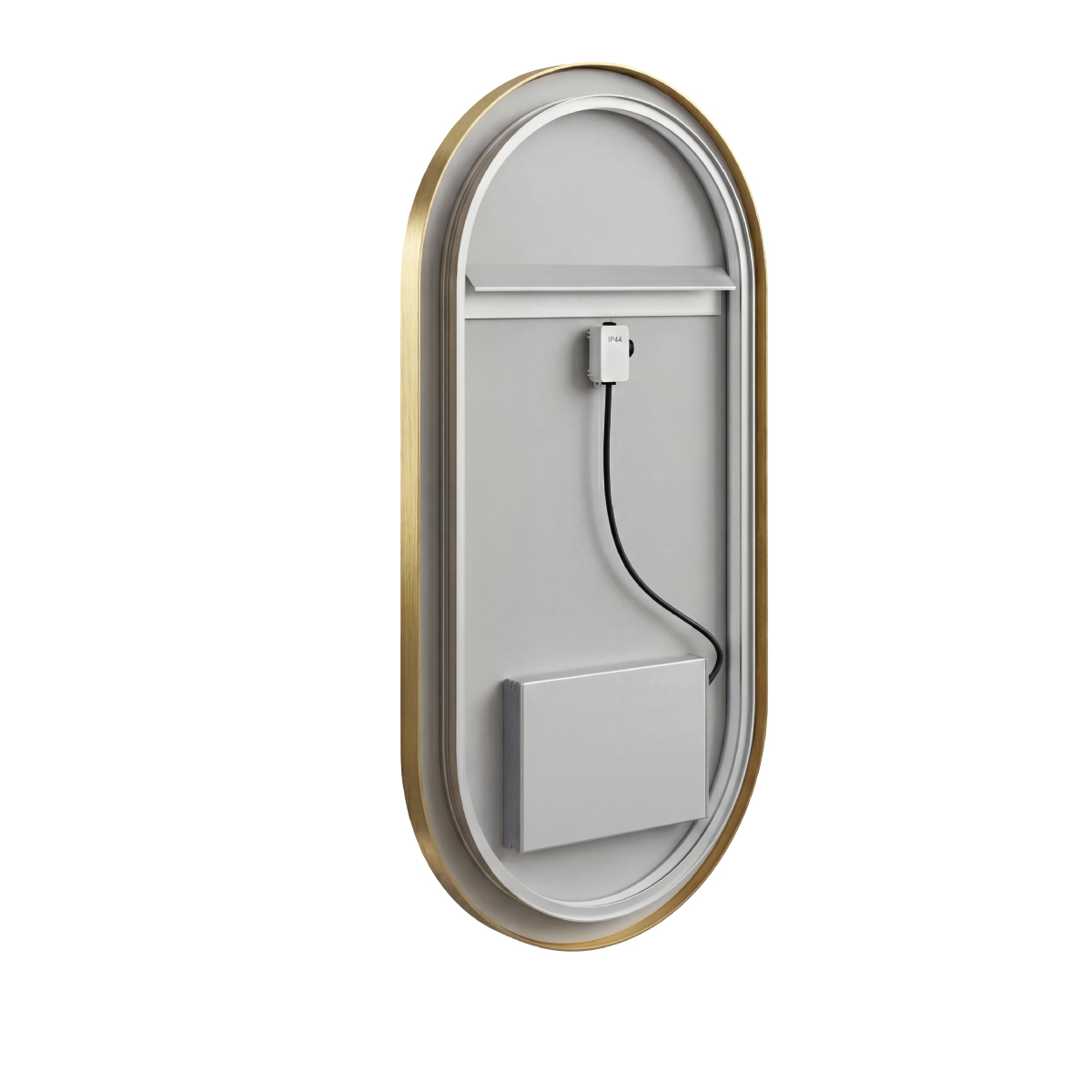

The outer visible frame with a cone profile, the rear aluminum profile for the LED lighting and the support bracket are made of aluminum. The same material is also used for the cover of the source and electronic components. The glass with a thickness of 5 mm is equipped with a safety film that protects against injury in case of breakage. The mirror has the degree of protection IP44, which ensures reliable operation even in an environment with increased humidity.
The mirror meets all Czech standards and is provided with a CE certificate, which guarantees its quality and safety. It is supplied with a complete mounting kit and a cable connector with IP44 protection. To ensure safe transport, the mirror is carefully packed and ready for dispatch via courier service.
Mirrors with indirect backlighting are intended for customers who perceive the mirror primarily as a clean design object and an additional element of the interior. Instead of an intense front light, they only offer soft backlighting, which creates a soft light border around the mirror. The light reflects off the wall, creating a pleasant, glare-free atmosphere and a sense of depth. This type of lighting underlines the architecture of the space without disturbing the integrity of the mirror surface. It is an ideal choice for lovers of minimalism and for interiors where functional lighting is solved separately and the mirror primarily fulfills an aesthetic and moody function.

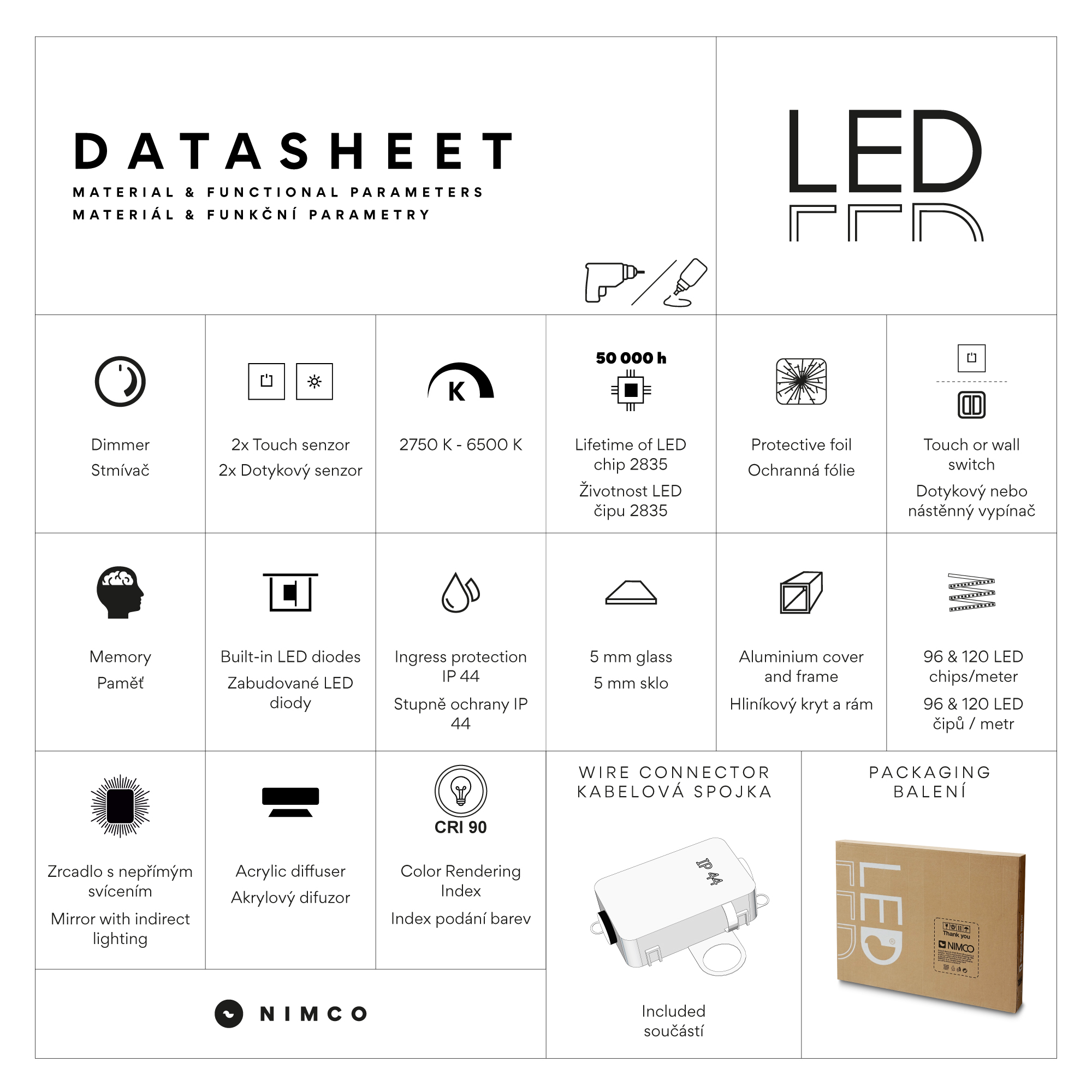

Control: Touch sensors + the possibility of control with a wall switch Light color adjustment: Yes Light color: Adjustable in the 2750–6500 K range (from warm to cool white) Dimming function: Smooth dimming Settings memory: Automatic settings memory Backlight Indirect LED backlight - ambient Lighting design: The mirror has an acrylic matte diffuser for even light dispersion LED integration: LEDs are built into the all-round aluminum profile. LED chip: The most advanced SMD 2835 LED chips LED strip - chip density: 192/m (96+96/m) Lifetime of LED chips: Up to 50 000 hours CRI 90 Material: Mirror glass, aluminum Construction material: The conical outer frame, rear LED profile and source cover are made of aluminum Glass thickness: 5 mm Break protection: Safety film Degree of protection: IP 44 Certification: CE certificate Placement: Wall mounting Construction: By drilling or gluing. The package includes a mounting kit for drilling, a cable connector with IP44 cover and a suspension rail that can be screwed or glued. Attention! Mamut glue is not part of the package, it can be purchased additionally under the item 35003TU Packaging: Packaged for shipment by courier service LED lighting quality: Aging factor = 0,95; Flicker = 0,005, Strobe = 0,008 Power consumption: 23 W, luminous flux: 3744 lm MATERIAL A FUNKCTIONAL PARAMETERS
NIMCO - Touch sensors LED mirrors
Mirrors with two touch sensors:
Connection options.The first option is to connect directly to the electrical circuit

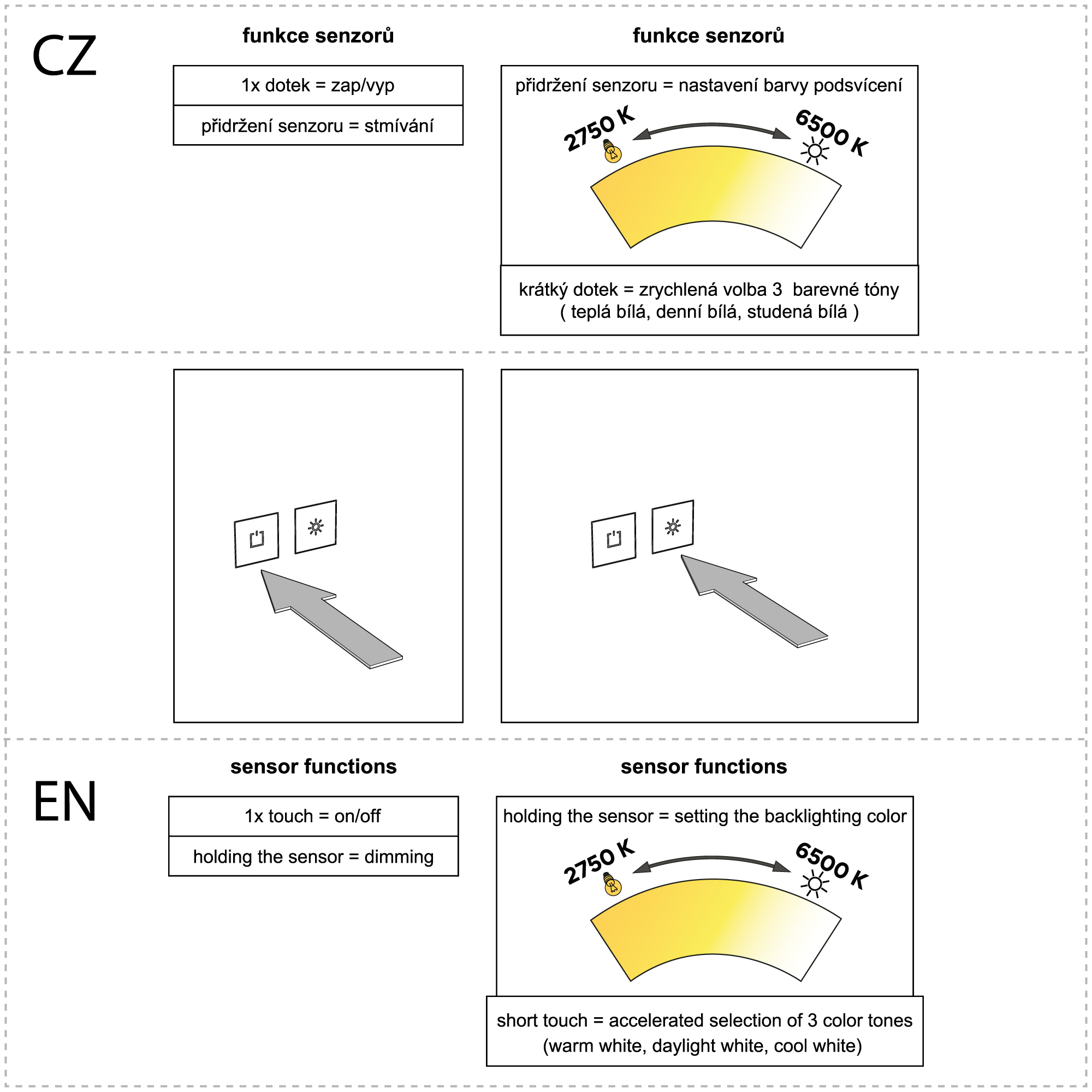

The left sensor : a short touch of the finger controls the switching on and off of the mirror. By holding your finger on the sensor, the intensity of the light (brightness of the mirror) is adjusted.Right sensor: It is possible to select from warm white (3000 K) to colder white (6500 K). It is also possible to quickly adjust the colour by a short touch of the finger: warm white (3000 K), another short touch white (4500 K) and a third touch cold white (6500 K).
The second option is to connect the mirror to a classic cradle switch in the bathroom, just like other light fittings.
Left sensor: A short touch of the finger controls the mirror on and off. Holding your finger on the sensor adjusts the intensity of the light (brightness of the mirror).Right Sensor: By holding your finger on the right sensor, the luminance colour temperature is gradually adjusted. It is possible to select from warm white (3000 K) to colder white (6500 K). It is also possible to quickly adjust the colour by a short touch of the finger: warm white (3000 K), another short touch white (45000 K) and a third touch cold white (6500 K).
The mirror is equipped with a memory, so that even when the rocker switch is turned off, it remembers all settings. Therefore, if you switch off the mirror using the touch sensor, it will not be possible to light it with the cradle switch.
Advantages : Option to choose your preferred white color temperature and brightness. Conveniently switch the mirror light on or off when standing in front of the mirror. Great for modern technology lovers.Disadvantages : none
INSTALLATION INSTRUCTION - DRILLLING NIMCO general illustrated assembly instructions.
The product includes screws and dowels. It can be used in concrete and cladding, which has a thickness of up to 8 mm.
Correct combination of dowels and screws for: CONCRETE - dowel diameter 6, screw min. 3.5 * 40mmBRICK - dowel diameter 6, screw min. 3.5 * 40mmRIGIPS - dowel fastening to plasterboard and hollow materials diameter 6mm, dowel lenght 35mm, screw 3.5 * 40mmFLOOR - dowel and screw - MUST be used with thickness of the given tiles (pavement)
Common assembly errors!
DOWNLOAD (.pdf)
MAINTENANCE FOR LED MIRRORS The mirror is basically maintenance-free. The outer side of the mirror requires washing by classic detergents for washing windows. Do
To clean the mirrors, simply use the cloths, which can be ordered under the article numbers RP 1006 and RP 1006 SET. These cloths are great helpers in the home, ideal especially for cleaning mirror and glass surfaces. Thanks to their high quality, they ensure perfect results every time they are used, without the need for chemicals.
Warning! Before operating the mirror, you have to turn the mirror off and turn off the electricity supply as well. Electric equipment of the mirror is
