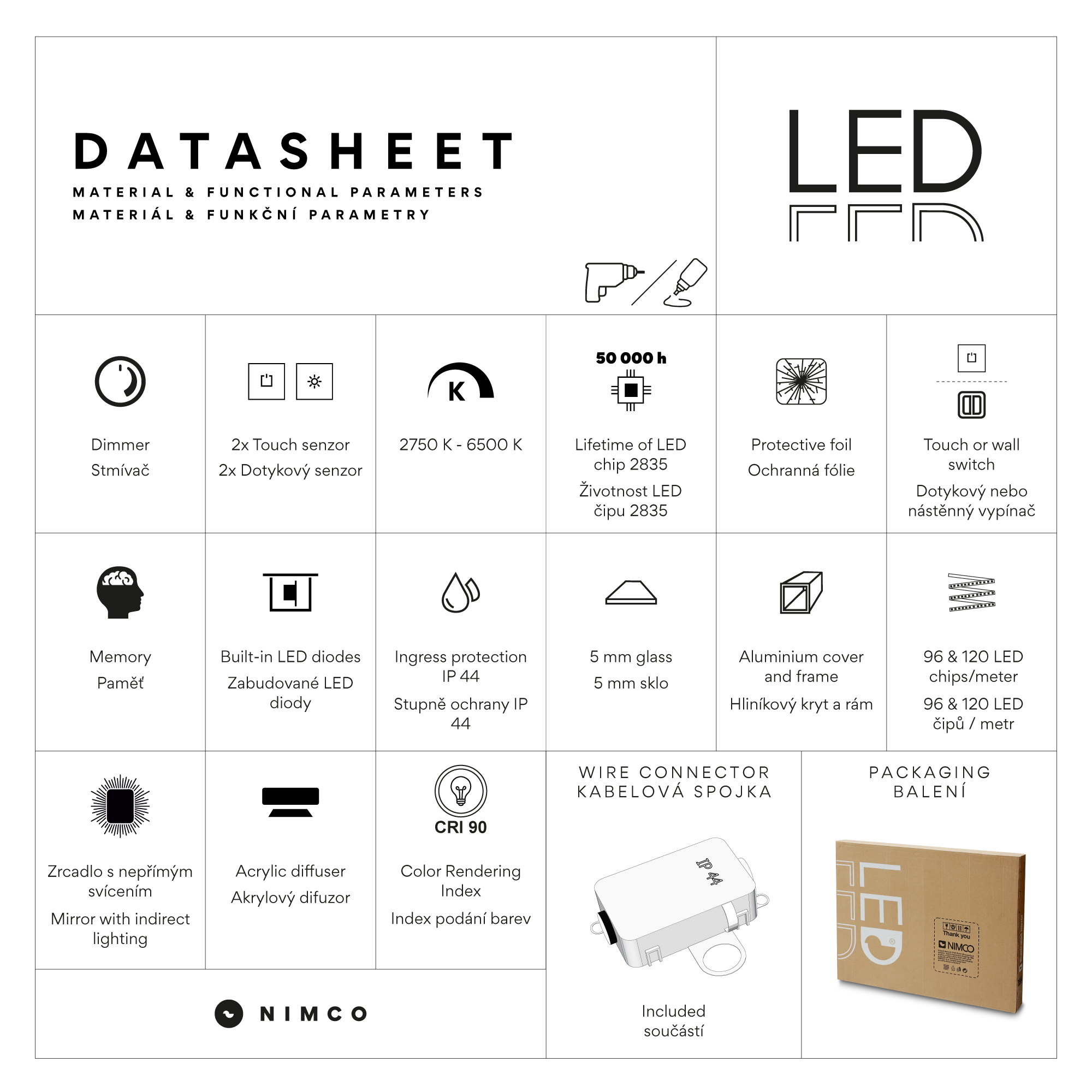

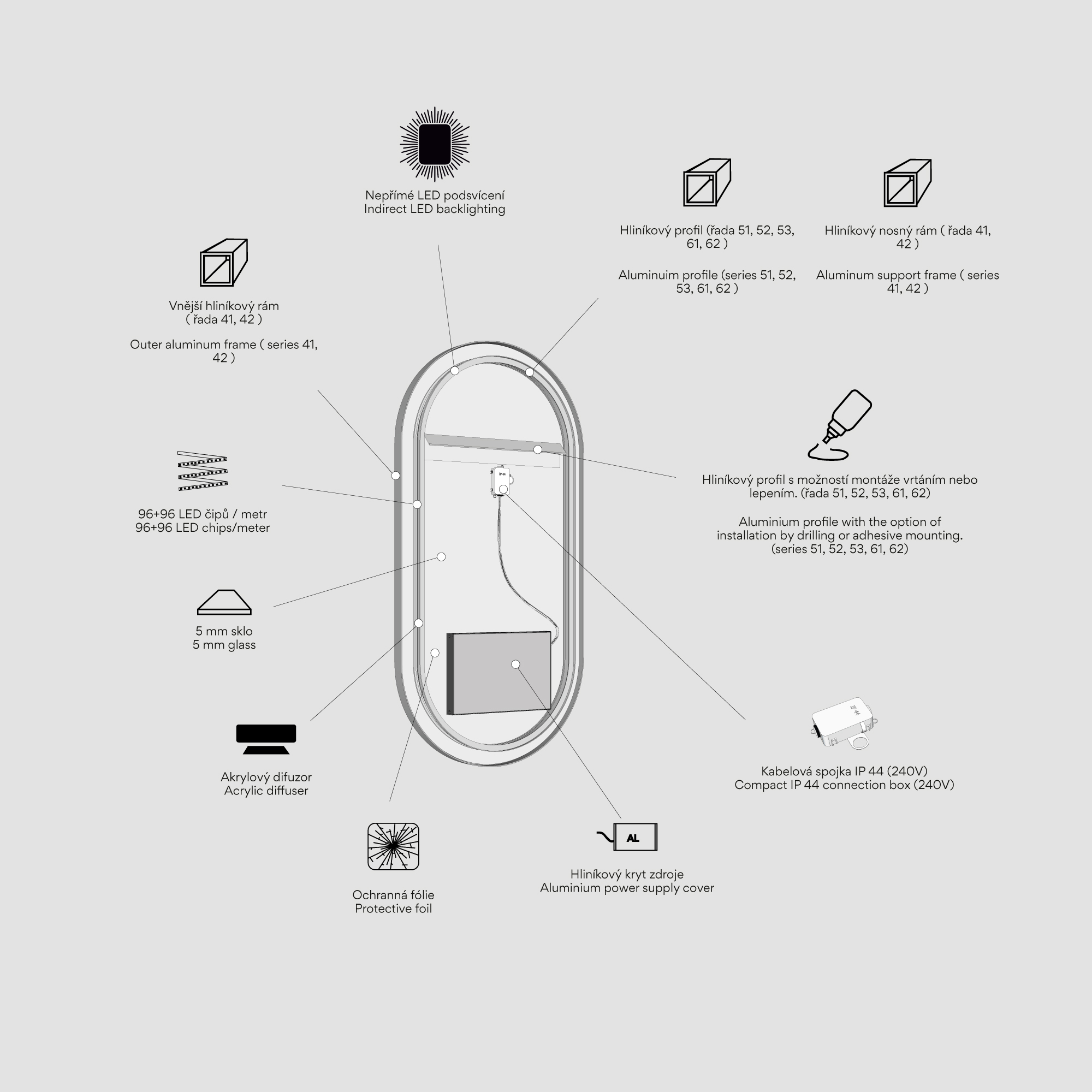

MATERIAL A FUNKCTIONAL PARAMETERS
NIMCO - Touch sensors LED mirrors
Mirrors with two touch sensors:
Connection options.The first option is to connect directly to the electrical circuit. In this case, the mirror will only be controlled by the touch sensors located on the mirror glass.
The left sensor: a short touch of the finger controls the switching on and off of the mirror. By holding your finger on the sensor, the intensity of the light (brightness of the mirror) is adjusted.
Right sensor: It is possible to select from warm white (3000 K) to colder white (6500 K). It is also possible to quickly adjust the colour by a short touch of the finger: warm white (3000 K), another short touch white (4500 K) and a third touch cold white (6500 K).
The second option is to connect the mirror to a classic cradle switch in the bathroom, just like other light fittings. Once the cradle switch is switched on, you can operate the mirror in the same way as with a direct connection to an electrical circuit. Thus :
Left sensor: A short touch of the finger controls the mirror on and off. Holding your finger on the sensor adjusts the intensity of the light (brightness of the mirror).
Right Sensor: By holding your finger on the right sensor, the luminance colour temperature is gradually adjusted. It is possible to select from warm white (3000 K) to colder white (6500 K). It is also possible to quickly adjust the colour by a short touch of the finger: warm white (3000 K), another short touch white (45000 K) and a third touch cold white (6500 K).
The mirror is equipped with a memory, so that even when the rocker switch is turned off, it remembers all settings. Therefore, if you switch off the mirror using the touch sensor, it will not be possible to light it with the cradle switch.
Advantages: Option to choose your preferred white color temperature and brightness. Conveniently switch the mirror light on or off when standing in front of the mirror. Great for modern technology lovers.
Disadvantages: none
INSTALLATION INSTRUCTION - DRILLLING
NIMCO general illustrated assembly instructions.
The product includes screws and dowels. It can be used in concrete and cladding, which has a thickness of up to 8 mm.
Correct combination of dowels and screws for:
CONCRETE - dowel diameter 6, screw min. 3.5 * 40mm
BRICK - dowel diameter 6, screw min. 3.5 * 40mm
RIGIPS - dowel fastening to plasterboard and hollow materials diameter 6mm, dowel lenght 35mm, screw 3.5 * 40mm
FLOOR - dowel and screw - MUST be used with thickness of the given tiles (pavement)
Common assembly errors!
-drilling into joints
-using the wrong size (diameter and length) of dowels and screws
-using the wrong drill size
-clogged hole after drilling
-the dowel used protrudes above the cladding. The dowel must be flush with the cladding. Otherwise, the product will not stick to the tile and it will warp!
- the product will not be attached to the wall in one plane if the holes are drilled incorrectly
DOWNLOAD (.pdf)
MAINTENANCE FOR LED MIRRORS
The mirror is basically maintenance-free. The outer side of the mirror requires washing by classic detergents for washing windows. Do
not use any aggressive detergent (especially those containing chlorine and its derivatives) which can cause oxidation of the mirror. The inner side of the mirror does not require any specific maintenance. In case of damaging the protective cover, it is necessary to replace it in the producer’s service centre.
To clean the mirrors, simply use the cloths, which can be ordered under the article numbers RP 1006 and RP 1006 SET. These cloths are great helpers in the home, ideal especially for cleaning mirror and glass surfaces. Thanks to their high quality, they ensure perfect results every time they are used, without the need for chemicals.
Warning! Before operating the mirror, you have to turn the mirror off and turn off the electricity supply as well. Electric equipment of the mirror is
maintenance-free. it is necessary to replace it just in case of light source failure. Contact the producer or seller for any repairs. Installation of the electrical device requires a qualified electrician and it should be done in accordance with regulations. If the supply cable is damaged, it must be replaced by the new cable provided by the producer or their service technician.
